Planning the installation space for state-of-the-art grinder equipment is like playing a Tetris game, fitting blocks into a limited space. This is because each piece of equipment has different sizes and shapes, requires consideration of traffic for production efficiency, and any miscalculation could result in losing space essential for important processes. While many companies encounter such challenges, Huvics demonstrates how it solved this complex puzzle through the real case of Company P.
The Challenge of Company P: Integrating Precision Equipment in Limited Space
Challenges in Introducing Equipment at Company P
The grinder equipment utilizing ultra-precision grinding technology is a key device that significantly boosts productivity. However, effectively positioning such advanced equipment in a limited production space is a practical challenge faced by many companies. The recent case of Company P, which planned to expand its camera module production, vividly illustrates how complex this concern can be.

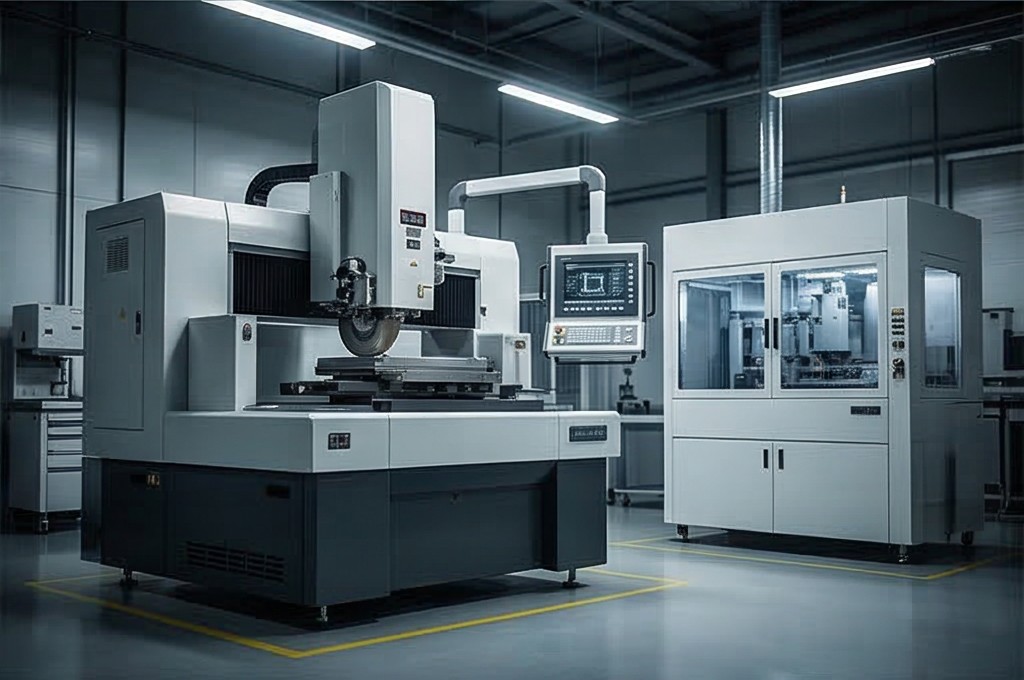

Company P needed to integrate a high-precision PKG grinder and a cleaner machine with a multi-step cleaning technology into an existing production line, but the available idle space was far narrower than expected, foreboding great difficulties from the start. Companies about to introduce grinder equipment often face dilemmas similar to Company P, as 'installation space' is one of the foremost realistic challenges encountered when bringing in new equipment. Particularly, cleaner machines that will connect to the full-auto grinder system to maximize production efficiency and precision require more than just the space that the equipment occupies.
Key Technologies of Huvics Solution: Customized Design to Maximize Space Efficiency
Customized Grinder System and Multi-step Cleaning Technology

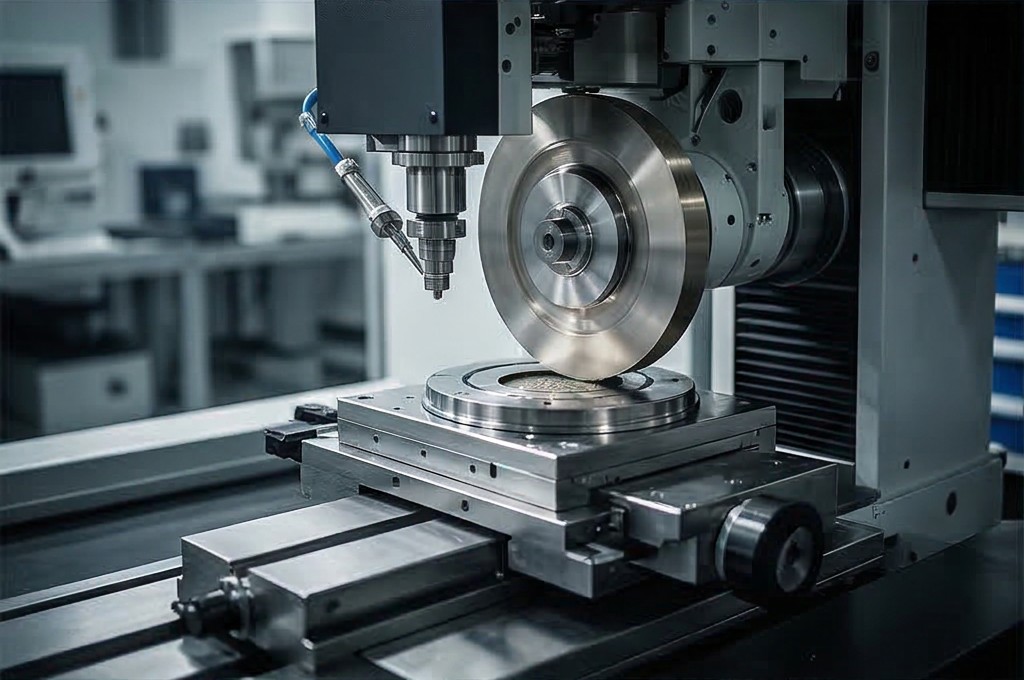

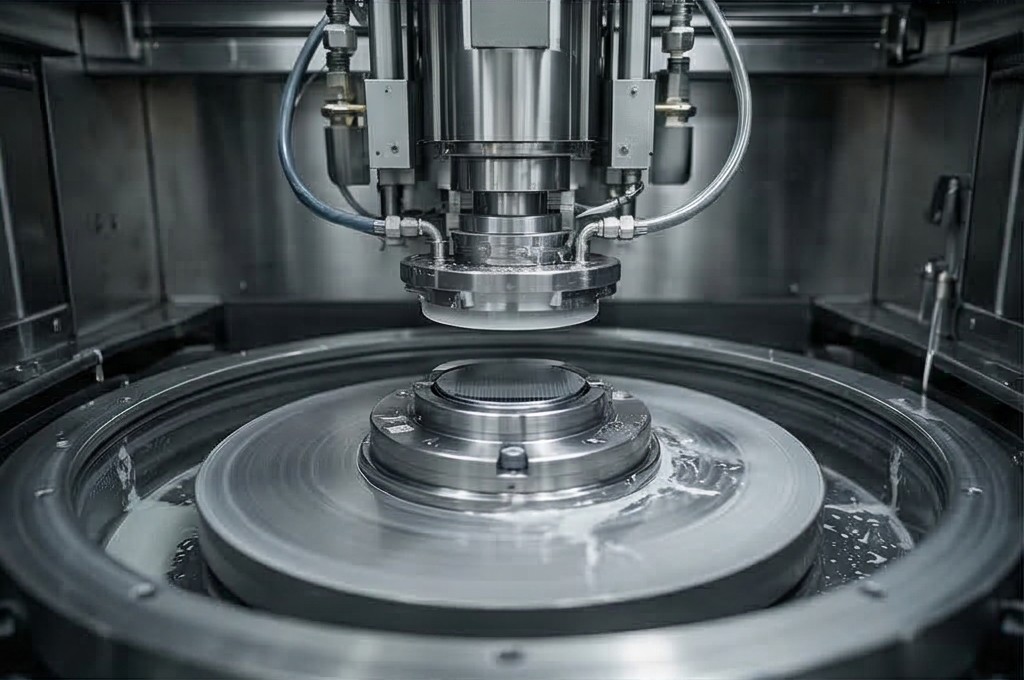

In this situation, Company P focused on Huvics's flexible solution. After diligently analyzing Company P's narrow space and complex production line traffic, Huvics maximized the advantages of a grinder system that allows free combination of full-auto and manual types. While maintaining the micron-level precision machining capability using the high-precision stage and diamond wheel of the PKG grinder, a customized design that optimized the installation space efficiency was suggested.

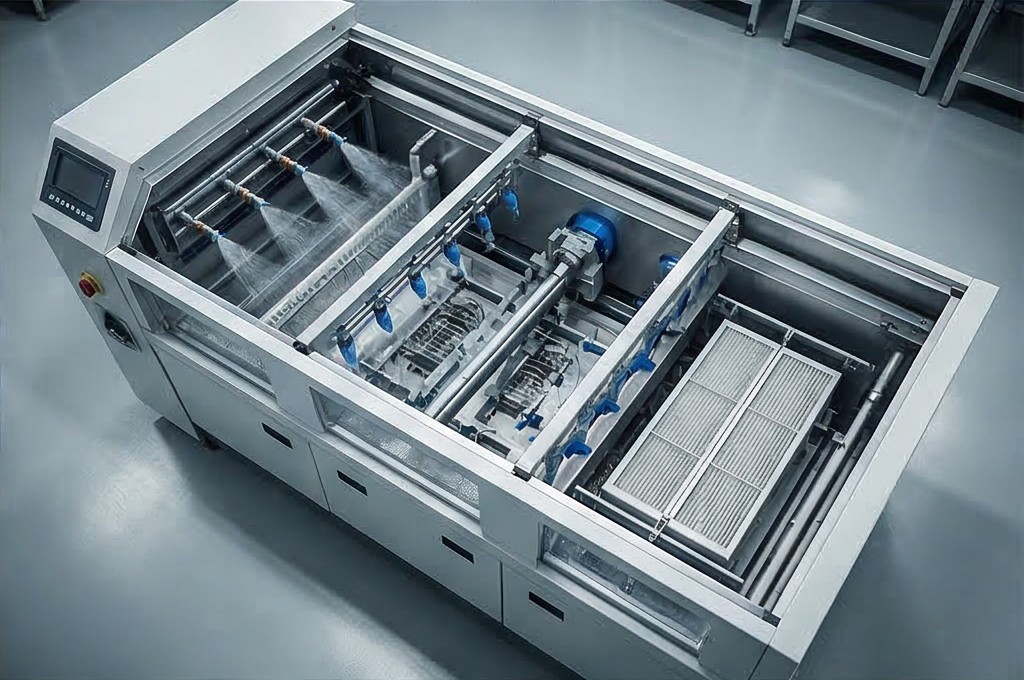

Moreover, Huvics's cleaner machine integrated multi-step cleaning technologies such as Micro Bubble, Water Jet, and Air Knife to ensure the highest cleaning efficiency in minimal space, and was designed to handle complete drying processes with the Oven Dry function. The cleaner machine Company P aimed to introduce went beyond simple cleaning functionality to perform advanced processes, and equipment boasting multi-step cleaning technology and perfect drying processes requires considering not only the space for the equipment itself but also ample room for maintenance, space for material movement, and environmental considerations to maintain stable performance. When a grinder system based on ultra-precision grinding technology is organically connected with such a cleaner machine, the production line exhibits maximized efficiency, but space planning becomes even more demanding.
Innovative Layout Strategy Surpassing Space Constraints
Company P concluded that the initially planned standard layout could not possibly satisfy such composite requirements. Understanding this deep concern, Huvics offered a customized solution to not only supply equipment but also actualize the optimal production environment.
Huvics's Customized Layout Strategy

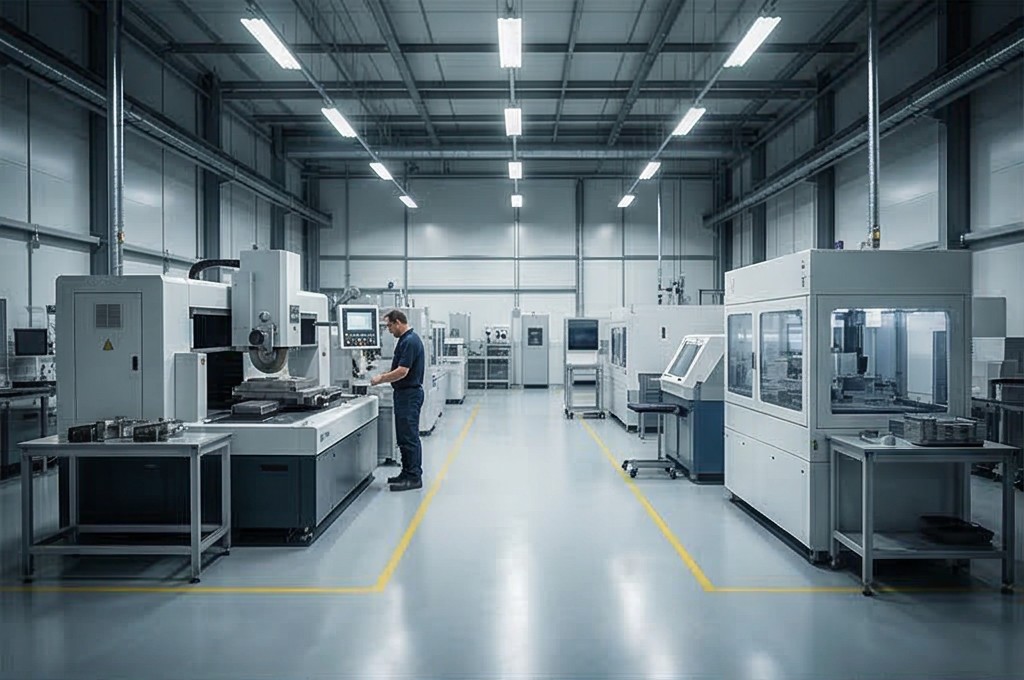

Huvics proposed equipment configurations most suitable to Company P's production line flow to maximize space utilization. Huvics's innovative layout strategies include the following:
- Re-design of cleaner machine ingress/egress section to minimize traffic and enhance equipment connectivity

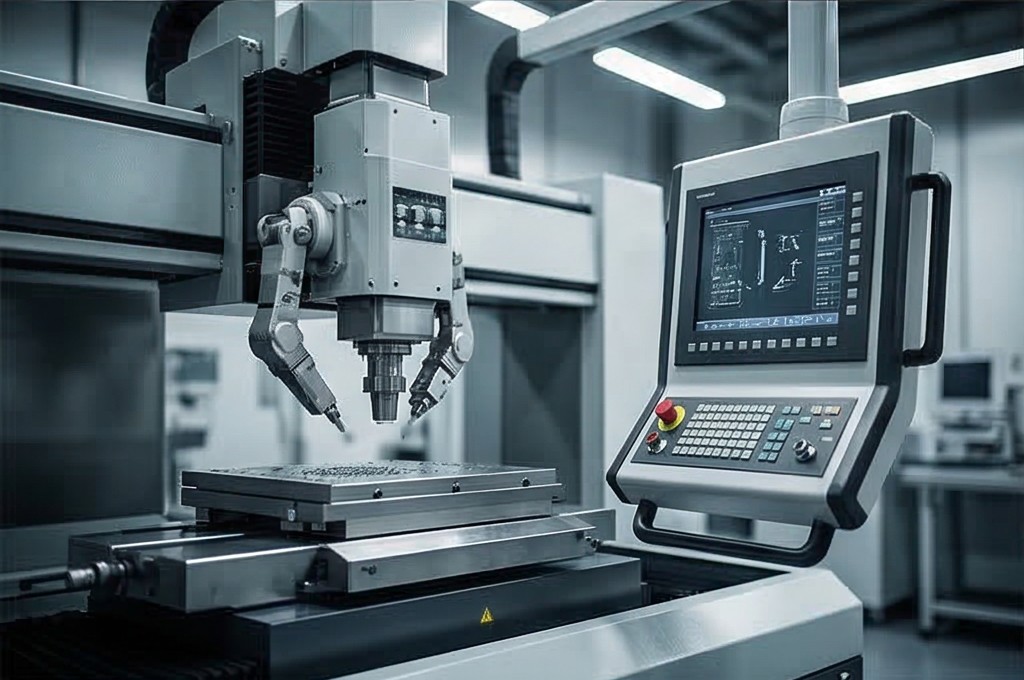

- Integrate utility lines and control panels along the equipment side to secure operator traffic
- Implement duct systems utilizing the upper space of the factory for three-dimensional spatial utilization
Thanks to such meticulous and comprehensive approaches by Huvics, Company P was able to establish the optimal production environment for high-precision grinding and perfect cleaning processes within the limited space.
Successful Results and the Value of Huvics
Company P's Successful Achievement of Production Goals
As a result, Company P could overcome the significant hurdle of space constraints and successfully achieve its production goals while ensuring final quality stability thanks to Huvics's solution. It enhanced particle removal efficiency and reduced defect rate essential for producing high-quality camera modules while ensuring process automation and maintenance ease within the limited space.
Key Lessons from the Case
This case delivers an important lesson that deciding the installation space for grinder equipment requires going beyond merely checking equipment spec sheets, integrating with related equipment like a cleaner machine, and considering maintenance and operational traffic as a whole. It proved that precise pre-planning and flexible approaches are key to enabling optimal equipment placement without unnecessary construction or productivity decline.
As demonstrated by Company P's case, introducing ultra-precision grinder equipment requires an integrated space solution that exceeds just equipment size considerations. Huvics proved that obtaining the highest production efficiency and quality is fully possible even in limited spaces through flexible equipment configuration and multi-step cleaning technology synergy. What is important is a flexible perspective and expertise in approaching space constraints to find solutions. Huvics will continue to contribute to implementing optimal production environments by solving even hidden problems of customers like this. It’s time to realize that space is no longer a barrier to productivity improvement.
Huvics is an advanced technology company developing and manufacturing automation equipment and production systems across the semiconductor, LED, Mobile, and Cosmetic industries.
With top talent and continuous technological innovation, it supports enhancing customer productivity and securing quality competitiveness.
